DOUBLE NOZZLE LIQUID FILLING FOR HIGH SPEED

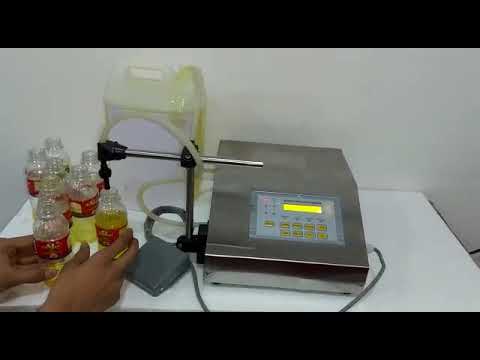

TABLE TOP LIQUID FILLING MACHINE
WHICH FILLS 2ML-2.5LITRE AND HAVING TIMER AND FOOT OPERATED PEDAL

The digital liquid filling machine is a semi-automatic machine, used to fill an accurate amount of liquid in bottles and containers. These machines work on the principle of gear pump filling. It is a compact machine with an attached silicon pipe. These machines have low power consumption and are easy to operate.This filling principle operates by storing the liquid above the bottles to be filled and allowing gravity to draw the liquid down. For this to work smoothly, the liquid has to be free-flowing with a consistent viscosity, and it should not have any particles that could obstruct its movement through the machine.

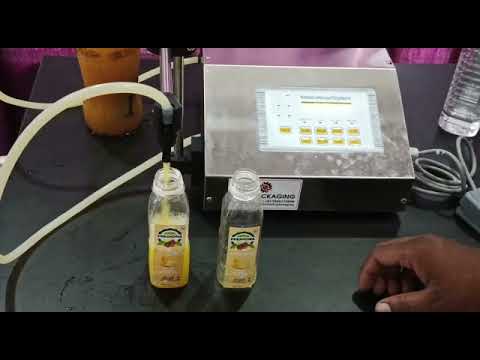

SINGLE NOZZLE DIGITAL TABLE TOP LIQUID FILLING MACHINE USED FOR FILLING LIQUIDS

• Parameter:- LT-130;Power:- 30w;Accuracy:- +/- 0.5%
• Power Source:- AC220V/40Hz;Max. Filling:- 5-3500ml;Total Weight:- 4.5Kg
• Max. Suction Lift:- 2M;Max. Flow:- 3.2L/Min
• Imported MCU control, stainless steel housing, in line with GMP requirements.LCD LCD display, touch panel operation more convenient and simple.
• Discharge nozzle drip design, high filling accuracy, and accurate measurement.Automatic counting function, effectively control the filling quantity
